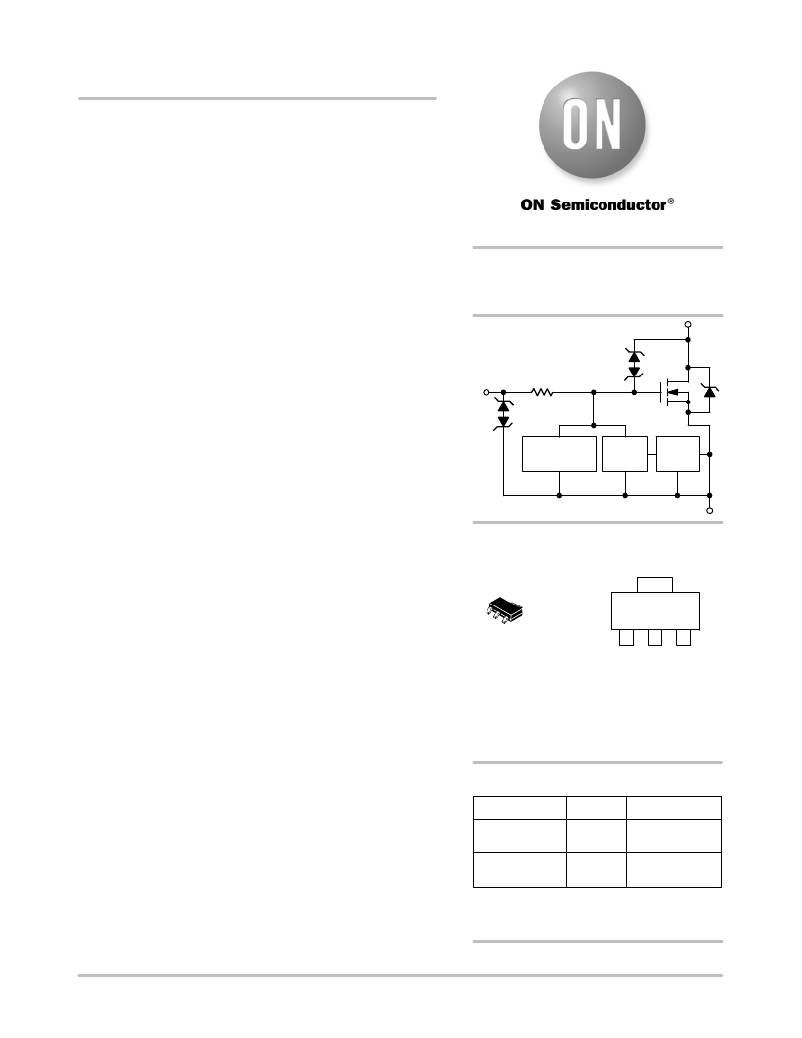

NIF62514
Self-Protected FET
with Temperature and
Current Limit
HDPlus devices are an advanced series of power MOSFETs which
utilize ON Semiconductor ’s latest MOSFET technology process to
achieve the lowest possible on ? resistance per silicon area while
incorporating smart features. Integrated thermal and current limits
work together to provide short circuit protection. The devices feature
an integrated Drain ? to ? Gate Clamp that enables them to withstand
high energy in the avalanche mode. The Clamp also provides
additional safety margin against unexpected voltage transients.
Electrostatic Discharge (ESD) protection is provided by an integrated
Gate ? to ? Source Clamp.
http://onsemi.com
6.0 AMPERES*
40 VOLTS CLAMPED
R DS(on) = 90 m W
Drain
Features
? Current Limitation
? Thermal Shutdown with Automatic Restart
? Short Circuit Protection
? Low R DS(on)
? I DSS Specified at Elevated Temperature
? Avalanche Energy Specified
? Slew Rate Control for Low Noise Switching
? Overvoltage Clamped Protection
? This is a Pb ? Free Device
Gate
Input
Overvoltage
Protection
R G
ESD Protection
Temperature Current
Limit Limit
M PWR
Current
Sense
Source
MARKING
DIAGRAM
DRAIN
1
2
3
4
SOT ? 223
CASE 318E
STYLE 3
1
4
AYW
62514 G
G
2 3
GATE
SOURCE
DRAIN
A = Assembly Location
Y = Year
W = Work Week
62514 = Specific Device Code
G = Pb ? Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
NIF62514T1G
NIF62514T3G
Package
SOT ? 223
(Pb ? Free)
SOT ? 223
Shipping ?
1000/Tape & Reel
4000/Tape & Reel
(Pb ? Free)
?For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
*Limited by the current limit circuit.
? Semiconductor Components Industries, LLC, 2009
April, 2009 ? Rev. 7
1
Publication Order Number:
NIF62514/D
